Suppliers = Cables Wholesale
- Walmart
- Radio Shack - All Electronics |
|
CW
|
Walmart |
Use a
hum loop filter with
"all" female RCA jack inputs"
Use 6' TRS cables with 2' extension add-on with couplers if needed |
| $1.37
6' |
$4.88
6'
|

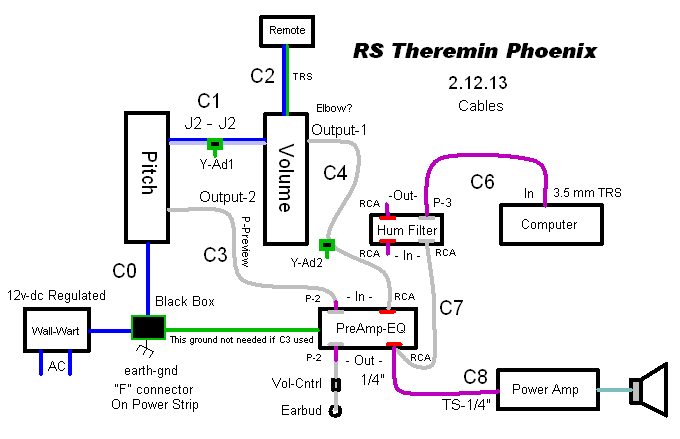

C0 -
6' TS Male-Male 12 volts dc with ground mixed in from
"F" connection
Need- 7 ? |
| $1.37
6'+ |
$2.28
12' |
C1 -
6' + 6' TRS Male-Male J2 to J2
Audio & Power to Volume board, center tap ground to
"F" xx |
| $1.37
6'+ |
$2.28
12' |
C2 -
6' or 10' TRS Male-Male (Normally
Not Used)
Requires custom Out-2b jack wiring. xx |
| $1.37
6' |
$4.88
6' |
C3 -
6' TS 3.5 mm Male to 1/4" Male
for Pitch Preview |
| $1.37
6'+ |
$2.28
12' |
C4 -
6' or 10' RCA Male-Male cable + 3.5 mm TS
elbow to RCA female adaptor |
| $1.37
6' |
$4.88
6'
|
C6 -
6' TRS 3.5 mm
(stereo) cable - computer to Loop filter
(use RCA-m adaptor
$.47)
xx |
| $.83
3' |
$3.74
|
C7 -
1.5' RCA to RCA Phono
(C5
& C7 could be same RCA dual cord) xx foil
& braid .79 |
| $.94
6' |
RS-? |
C8 -
6' TS Cable 1/4" to 1/4" TS Pre-Amp
To Power Amp Patch Cord $1.18
10'
Need 1 |
| $.47 |
$4.49
RS |
P2
Plug TS 3.5 mm female mono to RCA male
Need- 6 ? |
| $.29 |
Adapter
Need- 1 |
P3
Plug = RCA male with opposite side a TS 3.5 mm female mono
- Use TS 3.5 mm male mono Plug Adapter to stereo TRS 3.5 mm female
side for cable to the computer |
| 2
pack |
$4.19
RS |
Wire
Jack 3.5 mm TRS for green ground wire to plug onto Y-Ad1
& Y-Ad2 Need- 2 |
| $.42 |
Y-Adapter |
Plug
C1 Y-Ad
3.5 mm TRS 1 male 2 female for J2-J2 center ground *
Need- 2
One should be used in the cable center to connect a long
Output-1 to Amplifier run. |
| ground |
$1.39
RS |
"F"
Plugs - Solder on heavy ground green wire to go to ground points
Pack of 6 |
| ground |
$4.19
RS |
Jack
1/8" TRS stereo female for J2 - solder in "F"
ground wire Pack
of 2 - green wire |
| ground |
|
Alligator
clip to connect "F" ground to wart plug for
power supply ground - green wire |
| ground |
|
RCA
plug male to connect "F" ground to PreAmp,
use heavy gauge green wire |
|
$4.87
|
<=Lowes
|
Wire green
16 gauge for ground connections. 18 gauge may work, more flexible.
|
|
ground
|
$3.49
RS
|
Black box,
hides Wart connector and alligator clip for power
ground mix from "F".
|
| $7.31 |
Ideal
Choice |
500mA Universal AC/DC Adaptor
(Connect "F" to one
leg for ground)
Need- 1
Purchase this when you order your cables from my Phoenix
Cables webpage.
Use this wall-wart on
the 9 volt setting as it will be 12v with our theremins low load.
|
|
$24.99
|
<=Lowes
|
Power strip earth ground LED indicator,
coax cable, black Need- 1
|
| $6.50 |
<=Amazon |
Ground
Loop Filter, all Jacks female RCA I
like this Absolute model.
Purchase this along with getting the two wood
enclosures with a slide lid. |
|
|
|
|
CW
|
Walmart
|
Extra
Cable & Accessories Links (extra
pick
& choose)
|
| . |
$2.49
|
C4 Y-Ad
3.5 mm TRS Adapter 6" Cable 1 male 2 female for
gnds *
Need- 1
$7.99
RS
|
| $1.07
2' |
|
2'
Cable Extender 3.5 mm TRS (For Female End use .68
cent coupler
below)
Need- 4 |
| $.68 |
$5.49
RS |
Coupler
3.5 mm TRS female stereo to female stereo Buy- 4 |
| |
$4.77
6'+ |
6'
TRS 3.5 mm with right angle plugs, better than
5.49 below?
(1.5' available)
Need- 1 |
| |
$5.49
RS |
Elbow
C4 3.5mm TRS Male-Female (Use
above right angle cable) xx |
|
|
|
Y-Adapter 2
female 1/8" to 1 male RCA
Use 1 $.42
and 1 $.47
|
|
$.43
|
|
Coax right angle
adapter Male to Female Need- 1 Use with the two pieces
above.
|
|
$.47
|
earth gnd
|
Coax to RCA
female =>
1.5' RCA to RCA = 1/8" TRS to RCA
=> Y two 1/8 female
|
| $12.04 |
<=Amazon |
Ground
Loop Filter, all jacks female RCA 25 amp |
| $19.95 |
<=Lowes
|
Power strip earth ground LED indicator,
coax cable for ground, clean power Yes, white Need-
1? I found this in black in the store.
|
|
$1.46
|
<=Lowes
|
3 Prong Power Plug to Tap earth ground from wall receptacle
Need- 1
|
| $2.15 |
$2.28
12' |
12' TRS
3.5 mm male-male * |
| $.50 |
$3.88
|
C3
& C4 & C6 - Plug
Adapter 3.5mm Female to 1/4" TS Male Phono |
| $.81 |
|
Elbow
RCA male to RCA female |
| $1.41 |
|
6"
3.5 mm Y-Adapter
1 TRS female to 2 RCA male |
|
$5.49 |
6"
3.5 mm Y-Adapter
1 TRS male to 2 TRS 3.5 mm female |
|
$7.54 |
Ear
volume control TRS * |
|
|
Plug
TRS 3.5 mm female to RCA female adaptor into
PreAmp-EQ |
|
$4.49
RS |
"F"
coax male to RCA female Adapter |
|
$6.15 |
Gold
plated 10' TRS 3.5 mm Male-Male |
| $.42 |
$6.49
RS
|
Coupler
RCA female - female * Buy 4 |
| $.86 |
$2.49
|
6'
TS 3.5 mm cable RCA male to Mono 3.5 mm |
|
$3.88
|
3'
TRS 3.5 mm to split Y to 1/4", can cut
correct side off. |
|
$5.88
|
10' TRS
3.5 mm to split Y to
2 male 1/4" TS, can cut un-used side
off. |
|
$4.88
|
6'
TRS 3.5 mm male to split Y RCA
2 male |
|
$5.49
RS |
6'
TS Cable 3.5 mm to RCA male |
|
|
HDMI
Buy one or two at Cables Wholesale to add to the total for
free shipping. |
