4.27.14

The Middle Finger
Theremin Volume Control


 On - or - Squeeze Off
Theremin Musical Notes
Inception April 15, 2014

Listen.mp3 =>

The heart of the Finger Volume Control  is your squeezing off the light from a white LED to a CdS Cell, LDR or light dependant resistor.

This might be constructed from the parts removed from a bathroom night light, if the CdS off resistance is greater than one meg-ohm.

.
RS Theremin
www.Hwy79.com

by Christopher

Attack "with-out" Black Tube
Listen.mp3  *
Radio Audio

Shading "with" Black Tube
Listen.mp3
Radio Audio


Authentic Theremin Popper Effect
Listen.mp3
Amazing

Pitch Popper
webpage

* This is one answer to making a Pitch Only Theremin more musical *

The CdS Cell/LED setup may be all the volume quieting Attack most Thereminists want.


There is no agreement, even in the theremin community of what characteristics should define a theremin.

I say un-restrain it, let it be a blend of the classic theremin, Paul's box, etc. just keep it natural sounding.

* For me it is about a unique analog sound with "character", not a dry whistle buried in reverb *

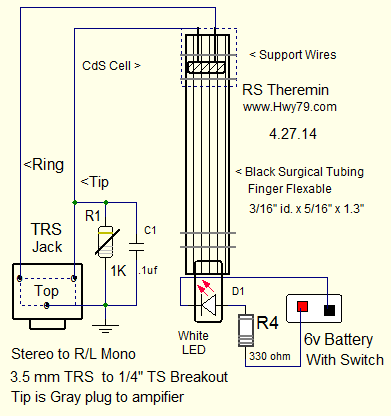

 Pass the line level audio signal through a CdS cell

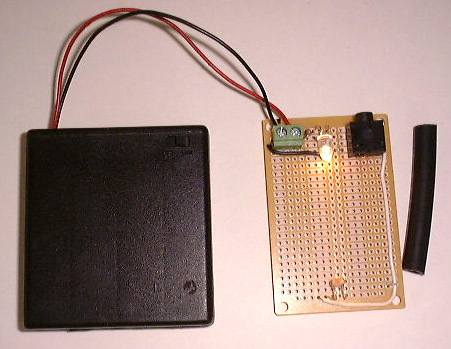

This could be wired up on a generic pcb board. The LED and Cell can be placed inside a 3/16" id, 1.3" long black piece of surgical tubing. The tube flexibility allows better control over shading.

This is soft so your finger can pinch off the light passing through for natural volume quieting. You want to use a CdS Cell with a high off resistance, 1M ohm is typical. This could mimic an actual volume loop sound perfectly.

This image below shows a small circuit board "the manual finger volume" placed next to the Popper Button. In practice either method/finger can cutoff the theremin sound with much greater attack than a volume loop. This is due to the little distance traveled by a body movement to achieve the results

Possibly the LED & CdS mounted in a support with a wrap around elastic wrist band would be effective for finger pressing.

This 3.5mm TRS breakout cable to 1/4" is used for audio In and Out.

Designing this as a belt/waist mounted setup seems interesting.

With a Pitch Only theremin using the complete Pitch Popper to the left, the middle finger holds the sound quiet so the index finger can pop-on the notes using the red button. This could become as natural as tapping out a tune on your kitchen table top. The white LED uses 13 ma @ 6 volts with four AA cells, they should last a year or two, if they start getting weak so will the sound.

< Image is 2x actual size

The main red Popper Button has the advantage of "Popping On" the sound and it can be triggered by several other electronic methods, other than a big red button.

Authentic Pitch Popper Effect
Listen.mp3
500k

Back to Pitch Popper
webpage


      If you have interest in building the Middle Finger let me know and I will send you some stuff at no cost  as your success is most important.

Contact Christopher: theremin@oldtemecula.com
